DB25 Pinouts for Trinnov Products

Discover the Tascam (analog) and Doremi/DCI (digital) DB25 pinouts used in Trinnov Ovation, Altitude, and Amplitude. Ensure you use the correct breakout cables for your setup.

Summary:

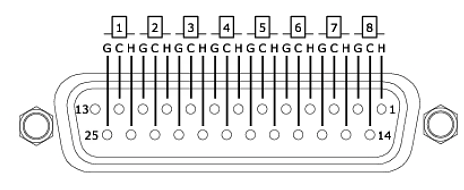

  • Tascam DB25 Analog Pinout
  • Doremi/DCI Digital Pinout
  • Other DB25 Standards



TASCAM DB25 Analog Pinout

Trinnov Ovation, Altitude, and Amplitude use the Tascam DB25 Analog Pinout standard for their analog input and output connectors. This standard is widely adopted in professional audio environments for multi-channel analog connections.





Doremi/DCI Digital Pinout

For AES/EBU digital connections, Trinnov Ovation and Altitude processors utilize the Doremi/DCI Digital Pinout standard.

This standard is specifically designed for digital audio signals and differs from the Tascam DB25 digital pinouts used in older Trinnov products like the D-MON and MC Processors.



Important:

  • The Doremi/DCI standard supports 16 channels per DB25 connector, unlike the Tascam digital standard, which uses 8x input & 8x output channels per connector.
  • Ensure that your digital breakout cables match the Doremi/DCI pinout to maintain signal integrity and avoid connectivity issues.

Pin #

Signal description

Pin #

Signal description

1

Ch 15 & 16 plus

14

Ch 15 & 16 minus

2

Ch 15 & 16 ground

15

Ch 13 & 14 plus

3

Ch 13 & 14 minus

16

Ch 13 & 14 ground

4

Ch 11 & 12 plus

17

Ch 11 & 12 minus

5

Ch 11 & 12 ground

18

Ch 9 & 10 plus

6

Ch 9 & 10 minus

19

Ch 9 & 10 ground

7

Ch 7 & 8 plus

20

Ch 7 & 8 minus

8

Ch 7 & 8 ground

21

Ch 5 & 6 plus

9

Ch 5 & 6 minus

22

Ch 5 & 6 ground

10

Ch 3 & 4 plus

23

Ch 3 & 4 minus

11

Ch 3 & 4 ground

24

Ch 1 & 2 plus

12

Ch 1 & 2 minus

25

Ch 1 & 2 ground

13

No connection





Other DB25 Standards (Not Used by Trinnov)

While the Yamaha DB25 pinout is another common standard in the industry, Trinnov products do not use this configuration.

Using Yamaha-standard cables with Trinnov equipment will result in incorrect signal routing .



Caution:

  • Always double-check the pinout standard of your breakout cables before connecting them to your Trinnov processor.
  • Trinnov resellers can provide compatible cables tailored to your specific needs.
